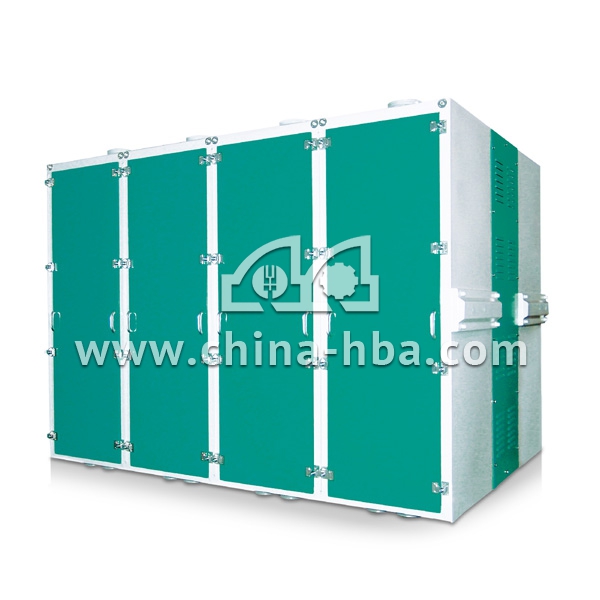

HFSG Plansichter
HFSG Plansichter

• It is an important equipment in flour processing. Plansifter is mainly used for grading and inspecting of stocks from various systems in flour grinding

• Unique labyrinth sealing device at motor shaft end disallows flour's entry.

• At the bottom of main shaft, there is elastic supporting device for the balance iron.

• Drive shaft adopts imported self-aligning roller bearing which ensures precise concentric rotation.

• Top sieve frame adopts adjustable pressing mechanism, convenient and easy for operation.

• New type sieve frames and novel design of bins increase the sieving area and capacity.

• Doors and passages are rigorously sealed, no stock escape and leakage.

• Plansifter frame is made by bending and welding with steel plates which are used for automobile crossbeams. It has good rigidity and fatigue resistance.

• The whole machine is fully enclosed and the motor is built in, with elegant appearance.

Model

HFSG 4×24H

HFSG 6×24H

HFSG 8×24H

Sieve frame size (mm)

740×740

740×740

740×740

Bin quantity

4

6

8

Sieve frame quantity

18-28

18-28

18-28

Sieve area (m2)

30.4-53.4

45.6-80.1

60.8-106.8

Rotating speed (r/min)

240

240

240

Swing diameter (mm)

60-65

60-65

60-65

Power(kw)

5.5

7.5

11

Installation height (mm)

3700-4000

3700-4000

3700-4000

Effective sieve frame height (mm)

2100

2100

2100

Weight (kg)

3500

4900

6600

Dimension (mm)

2032×2737×3700

2910×2737×3700

3776×2737×3700
